Camshaft Quick Identification Guide |
CAUTION! The items in this catalog are listed for use only in the
applications and interchanges that appear in the catalog. Other use could
result in property damage or serious personal injury. Always refer to the
vehicle, trailer, or component manufacturer's service manual when performing
vehicle maintenance.
NOTE: The data listed herein is correct to the best of our knowledge and
belief, having been compiled from reliable and official sources of information.
However, we cannot assume any responsibility for possible errors.
If any errors are found, or you have suggestions on ways to improve future
catalogs, we want to hear from you. Please complete the Catalog Comment
Form in the back of this catalog. Thank you for your assistance. |
How to use this Quick Identification Guide |
- Measure camshaft length. Measure from under the cam head to the beginning of the lock ring groove.
- Locate camshaft length in the Camshaft Quick Identification Guide. Camshafts are listed in order of length, from shortest to
longest.

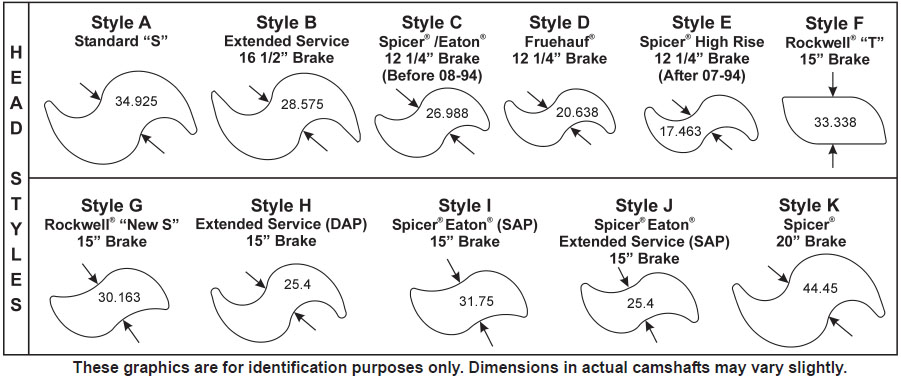

- After finding camshafts in the Cam Length column, determine camshaft head style, using the Head Styles chart and head width
dimensions.
- Narrow your final selection by Diameter at Spline End and Number of Splines, Diameter at Spider and any other information listed.
|
These graphics are for identification purposes only. Dimensions in actual camshafts may vary slightly. |
|
|
|
|
|
Cam
Length |
Head Style |
Diameter at Spline
End & No. of Splines |
Diameter at Spider |
Spicer Part
Number |
Side |
Axle Type* |
Brake Manufacturer |
Brake Size |
Notes |
217.488 |
I |
31.75 |
10 |
31.75 |
18-766 18-767 |
RH , LH |
S |
Eaton |
381.0 |
Single Anchor Pin (SAP) |
217.488 |
A |
38.1 |
10 |
38.1 |
18-804 18-805 |
RH , LH |
D |
Rockwell |
419.1 |
|
217.488 |
J |
31.75 |
10 |
31.75 |
18-968 18-969 |
RH , LH |
S |
Eaton |
381.0 |
Extended Service Brake (ES™);
Single Anchor Pin (SAP) |
219.075 |
A |
31.75 |
10 |
31.75 |
18-624 18-625 |
RH , LH |
S |
Spicer |
381.0 |
|
219.075 |
B |
38.1 |
10 |
38.1 |
18-940 18-941 |
RH , LH |
D |
Eaton |
419.1 |
Extended Service Brake (ES™) |
219.869 |
F |
38.1 |
10 |
38.1 |
18-882 18-883 |
RH , LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
222.25 |
A |
31.75 |
10 |
31.75 |
18-626 18-627 |
RH , LH |
S |
Spicer |
381.0 |
|
225.425 |
A |
38.1 |
10 |
38.1 |
17-612 17-613 |
RH , LH |
T |
Spicer |
419.1 |
Spicer Custom Trunnion Suspension;
1 1/2" tip 38.1 |
224.425 |
F |
38.1 |
10 |
38.1 |
18-880 18-881 |
RH , LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
227.013 |
A |
38.1 |
10 |
38.1 |
18-728 18-729 |
RH , LH |
D |
Eaton |
419.1 |
|
227.013 |
I |
31.75 |
10 |
31.75 |
18-768 18-769 |
RH , LH |
S |
Eaton |
381.0 |
Single Anchor Pin (SAP) |
227.013 |
J |
31.75 |
10 |
31.75 |
18-970 18-971 |
RH , LH |
S |
Eaton |
381.0 |
Extended Service Brake (ES™); Single Anchor Pin (SAP) |
229.394 |
A |
38.1 |
28 |
38.1 |
18-646 18-647 |
RH , LH |
D |
Spicer |
419.1 |
5", 6", and 7" Brakes
127.0,152 & 177.8 |
230.188 |
A |
38.1 |
28 |
38.1 |
18-850 18-851 |
RH , LH |
D |
Rockwell |
419.1 |
|
230.188 |
B |
38.1 |
28 |
38.1 |
18-506 18-507 |
RH , LH |
D |
Rockwell |
419.1 |
“Q Plus” Brake |
230.981 |
A |
38.1 |
10 |
38.1 |
18-794 18-795 |
RH , LH |
D |
Rockwell |
419.1 |
|
231.775 |
F |
38.1 |
10 |
38.1 |
18-884 18-885 |
RH , LH |
S |
Rockwell |
38.10 |
''T'' Series Brake |
233.363 |
I |
31.75 |
10 |
31.75 |
18-770 18-771 |
RH , LH |
S |
Eaton |
381.0 |
Single Anchor Pin (SAP) |
233.363 |
J |
31.75 |
10 |
31.75 |
18-972 18-973 |
RH , LH |
S |
Eaton |
381.0 |
Extended Service Brake (ES'')
Single Anchor Pin (SAP) |
234.95 |
A |
31.75 |
10 |
31.75 |
18-628 18-629 |
RH , LH |
S |
Spicer |
381.0 |
|
234.95 |
A |
38.1 |
28 |
38.1 |
18-862 18-863 |
RH , LH |
D |
Rockwell |
419.1 |
|
234.95 |
F |
31.75 |
10 |
31.75 |
18-872 18-873 |
RH , LH |
S |
Rockwell |
381.0 |
''T'' Series Brake |
234.95 |
G |
31.75 |
24 |
31.75 |
18-896 18-897 |
RH , LH |
S |
Rockwell |
381.0 |
''Q'' Brake offset Backing
Plate |
234.95 |
G |
31.75 |
10 |
31.75 |
18-956 18-957 |
RH , LH |
S |
Rockwell |
381.0 |
''T'' Series Brake; New Style S
Head |
236.538 |
G |
31.75 |
24 |
31.75 |
18-906 18-907 |
RH , LH |
S |
Rockwell |
381.0 |
''Q'' Brake 2'' offset
Backing Plate |
236.538 |
H |
38.1 |
28 |
38.1 |
18-936 18-937 |
RH , LH |
S |
Rockwell |
381.0 |
''Q Plus'' Brake; Dual Anchor Pin
(DAP) |
239.713 |
B |
38.1 |
28 |
38.1 |
18-508 18-509 |
RH , LH |
D |
Rockwell |
419.1 |
''Q Plus'' Brake |
239.713 |
H |
38.1 |
28 |
38.1 |
18-938 18-939 |
RH , LH |
S |
Rockwell |
381.0 |
''Q Plus'' Brake; Dual Anchor Pin
(DAP) |
240.506 |
G |
31.75 |
24 |
31.75 |
18-898 18-899 |
RH , LH |
S |
Rockwell |
381.0 |
''Q'' Brake offset Backing
Plate |
240.903 |
A |
38.1 |
10 |
38.1 |
18-782 18-783 |
RH , LH |
D |
Rockwell |
419.1 |
|
241.3 |
A |
37.75 |
10 |
37.75 |
18-630 18-631 |
RH , LH |
S |
Spicer |
381.0 |
|
241.3 |
A |
38.1 |
28 |
38.1 |
18-864 18-865 |
RH , LH |
D |
Rockwell |
419.1 |
|
242.094 |
F |
31.75 |
10 |
31.75 |
18-874 18-875 |
RH , LH |
S |
Rockwell |
381.0 |
"T' Series Brake |
242.094 |
G |
31.75 |
24 |
31.75 |
18-900 18-901 |
RH , LH |
S |
Rockwell |
381.0 |
''Q'' Brake Offset
Backing Plate |
242.094 |
G |
31.75 |
10 |
31.75 |
18-958 18-959 |
RH , LH |
S |
Rockwell |
381.0 |
'' T '' Series Brake; New Style S
-Head |
242.888 |
I |
31.75 |
10 |
31.75 |
18-772 18-773 |
RH , LH |
S |
Eaton |
381.0 |
Single Anchor Pin (SAP) |
242.888 |
J |
31.75 |
10 |
31.75 |
18-974 18-975 |
RH , LH |
S |
Eaton |
381.0 |
Extended Service Brake (ES) Single
Anchor Pin (SAP) |
247.65 |
A |
38.1 |
28 |
38.1 |
18-888 18-889 |
RH , LH |
D |
Rockwell |
419.1 |
|
248.444 |
I |
31.75 |
10 |
31.75 |
18-774 18-775 |
RH , LH |
S |
Eaton |
381.0 |
Single Anchor Pin (SAP) |
249.238 |
A |
38.1 |
10 |
38.1 |
18-730 18-731 |
RH , LH |
D |
Eaton |
419.1 |
|
249.238 |
F |
31.75 |
10 |
31.75 |
18-876 18-877 |
RH , LH |
S |
Rockwell |
381.0 |
''T'' Series Brake |
*Axle Type: S = Steer, D = Drive, T = Trailer |
