Cam
Length |

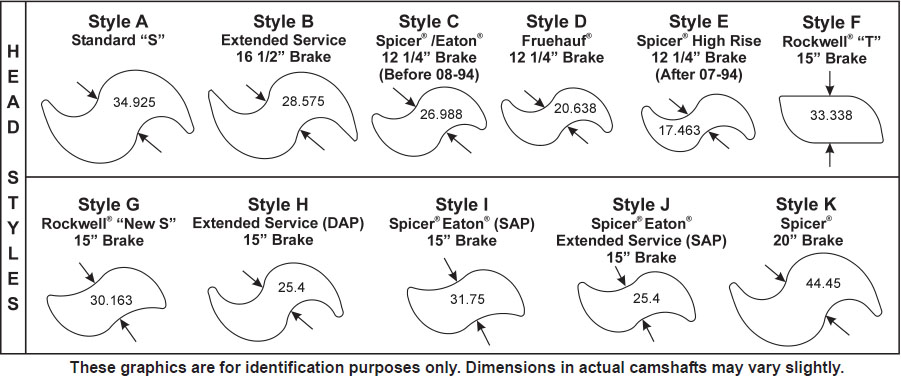

Head Style |
Diameter at Spline End & No. of Splines |
Diameter at Spider |
Spicer Part
Number |
Side |
Axle Type* |
Brake Manufacturer |
Brake Size |
Notes |
176.213 |
B |
38.10 |
28 |
38.10 |
18-670
18-671 |
RH
LH |
D |
Spicer |
419.10 |
"XL" and “XLII” Brakes; 5", 6" and 7" Brakes |
180.975 |
G |
31.75 |
24 |
31.75 |
18-902
18-903 |
RH
LH |
S |
Rockwell |
381.0 |
“Q” Brake; 2" Offset Backing Plate |
187.325 |
A |
38.1 |
10 |
38.1 |
17-608
17-609
|
RH
LH |
T |
Spicer |
419.10 |
Spicer Custom Trunnion Suspension; 1 38.1 tip |
192.088 |
F |
38.1 |
10 |
38.1 |
18-842
18-843 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
193.675 |
A |
38.1 |
10 |
38.1 |
17-610
17-611 |
RH
LH |
T |
Spicer |
419.10 |
Spicer Custom Trunnion Suspension; 1 38.1 tip |
193.675 |
I |
31.75 |
10 |
31.75 |
18-760
18-761 |
RH
LH |
S |
Eaton |
381.0 |
Single Anchor Pin (SAP) |
193.675 |
J |
31.75 |
10 |
31.75 |
18-960
18-961 |
RH
LH |
S |
Eaton |
381.0 |
Extended Service Brake (ES™); Single Anchor Pin (SAP) |
194.469 |
F |
31.75 |
10 |
31.75 |
18-1129
18-1130 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
194.469 |
G |
31.75 |
10 |
31.75 |
18-954
18-955 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake; New Style S-Head |
196.056 |
B |
38.1 |
28 |
38.1 |
18-500
18-501 |
RH
LH |
D |
Rockwell |
419.10 |
“Q Plus” Brake |
196.056 |
A |
38.1 |
28 |
38.1 |
18-796
18-797 |
RH
LH |
D |
Rockwell |
419.10 |
|
196.056 |
G |
31.75 |
24 |
31.75 |
18-904
18-905 |
RH
LH |
S |
Rockwell |
381.0 |
“Q” Brake; 2" Offset Backing Plate |
196.85 |
A |
38.1 |
28 |
38.1 |
18-640
18-641 |
RH
LH |
D |
Spicer |
419.1 |
5", 6", and 7" Brakes 127.0, 152.48 177.8 |
199.231 |
A |
38.1 |
10 |
38.1 |
18-988
18-989 |
RH
LH |
D |
Rockwell |
368.3 |
"W" Brake |
200.025 |
A |
38.1 |
10 |
38.1 |
18-802
18-803 |
RH
LH |
D |
Rockwell |
419.1 |
|
201.613 |
A |
31.75 |
10 |
31.75 |
18-620
18-621 |
RH
LH |
S |
Spicer |
381.0 |
|
201.613 |
I |
31.75 |
10 |
31.75 |
18-762
18-763 |
RH
LH |
S |
Eaton |
381.0 |
Single Anchor Pin (SAP) |
201.613 |
F |
31.75 |
10 |
31.75 |
18-856
18-857 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
201.613 |
G |
31.75 |
24 |
31.75 |
18-890
18-891 |
RH
LH |
S |
Rockwell |
381.0 |
“Q” Brake; 1 1/2" Offset Backing Plate 38.1 |
201.613 |
G |
31.75 |
10 |
31.75 |
18-950
18-951 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake; New Style S-Head |
201.613 |
J |
31.75 |
10 |
31.75 |
18-962
18-963 |
RH
LH |
S |
Eaton |
381.0 |
Extended Service Brake (ES™); Single Anchor Pin (SAP) |
203.994 |
F |
38.1 |
10 |
38.1 |
18-844
18-845 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
204.788 |
B |
38.1 |
28 |
38.1 |
18-502
18-503 |
RH
LH |
D |
Rockwell |
419.1 |
“Q Plus” Brake |
204.788 |
A |
38.1 |
10 |
38.1 |
18-854
18-855 |
RH
LH |
D |
Rockwell |
419.1 |
|
206.375 |
A |
31.75 |
10 |
31.75 |
18-622
18-623 |
RH
LH |
S |
Spicer |
381.0 |
|
206.375 |
A |
38.1 |
28 |
38.1 |
18-642
18-643 |
RH
LH |
D |
Spicer |
419.1 |
5", 6" and 7" Brakes 127.0, 152.4 , 177.8 |
206.375 |
A |
38.1 |
28 |
38.1 |
18-860
18-861 |
RH
LH |
D |
Rockwell |
419.1 |
|
207.566 |
I |
31.75 |
10 |
31.75 |
18-764
18-765 |
RH
LH |
S |
Eaton |
381.0 |
Single Anchor Pin (SAP) |
207.963 |
A |
38.1 |
10 |
38.1 |
18-704
18-705 |
RH
LH |
S |
Bendix |
381.0 |
Brazilian Brake |
207.963 |
J |
31.75 |
10 |
31.75 |
18-964
18-956 |
RH
LH |
S |
Eaton |
381.0 |
Extended Service Brake (ES™); Single Anchor Pin (SAP) |
208.756 |
F |
38.1 |
10 |
38.1 |
18-846
18-847 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
212.725 |
J |
31.75 |
10 |
31.75 |
18-966
18-967 |
RH
LH |
S |
Eaton |
381.0 |
Extended Service Brake (ES™); Single Anchor Pin (SAP) |
215.106 |
G |
31.75 |
24 |
31.75 |
18-892
18-893 |
RH
LH |
S |
Rockwell |
381.0 |
“Q” Brake; 1 1/2" Offset Backing Plate 38.1 |
215.90 |
A |
38.1 |
28 |
38.1 |
18-644
18-645 |
RH
LH |
D |
Spicer |
419.1 |
5", 6" and 7" Brakes
127.0, 152.4 , 177.8 |
215.90 |
F |
38.1 |
10 |
38.1 |
18-848
18-849 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
215.90 |
F |
31.75 |
10 |
31.75 |
18-858
18-859 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake |
215.90 |
G |
31.75 |
10 |
31.75 |
18-952
18-953 |
RH
LH |
S |
Rockwell |
381.0 |
"T" Series Brake; New Style S-Head |
216.694 |
A |
38.1 |
28 |
38.1 |
18-824
18-825 |
RH
LH |
D |
Rockwell |
419.1 |
|
216.694 |
G |
31.75 |
24 |
31.75 |
18-894
18-895 |
RH
LH |
S |
Rockwell |
381.0 |
“Q” Brake; 1 1/2" Offset Backing Plate 38.1 |
217.488 |
B |
38.1 |
28 |
38.1 |
18-504
18-505 |
RH
LH |
D |
Rockwell |
419.1 |
“Q Plus” Brake |
217.488 |
A |
38.1 |
10 |
38.1 |
18-726
18-727 |
RH
LH |
D |
Eaton |
419.1 |
|
*Axle Type: S = Steer, D = Drive, T = Trailer |
All Images and Brand Names are for Reference only |
